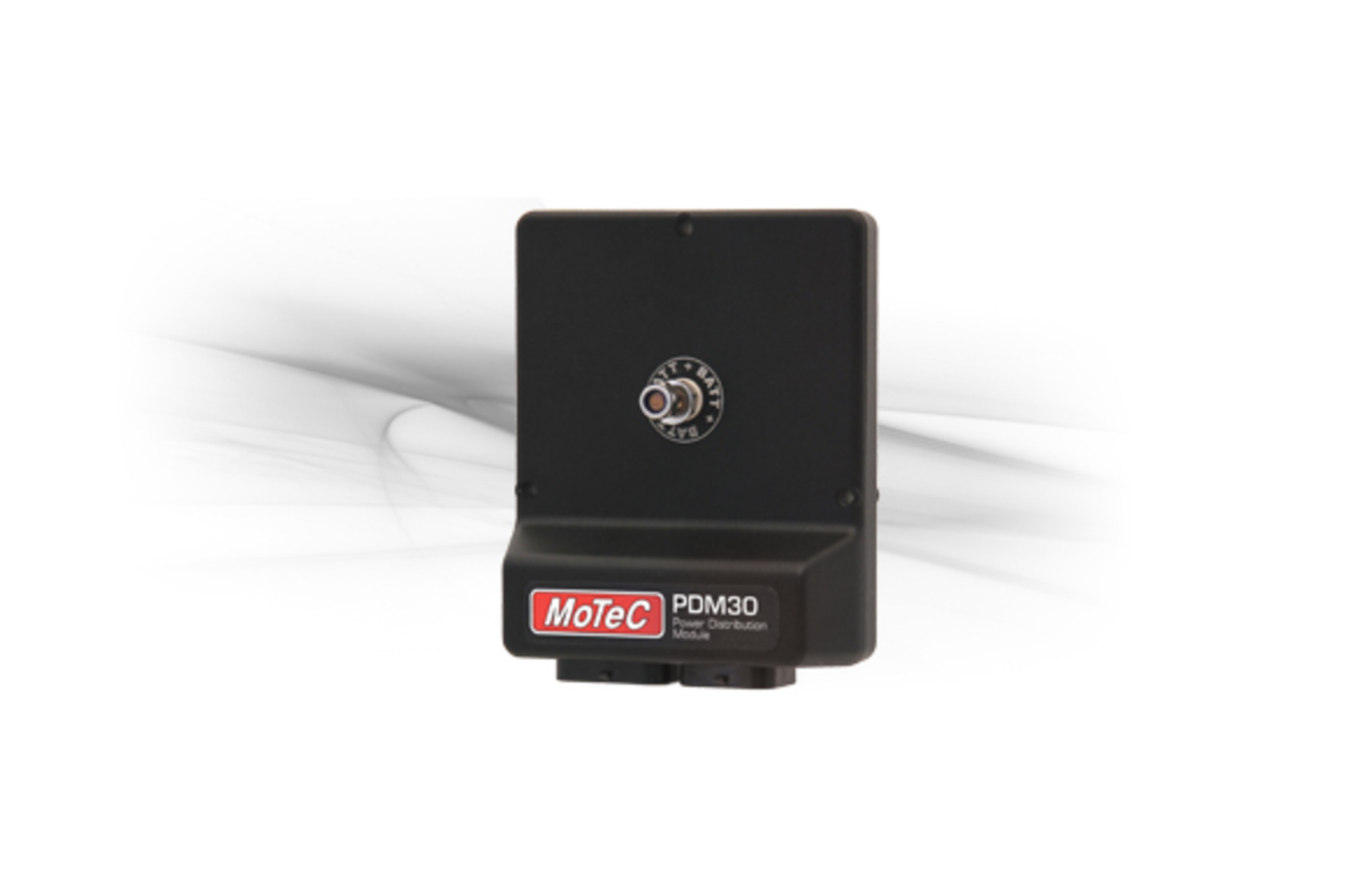

MoTeC PDM30
$3,420.84 ea
We do not supply Motec hardware ECU, PDM or DASH outside of Victoria, Australia.You will need to contact your local dealer.
MoTeC’s 30 output Power Distribution Module (PDM30) is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights and solenoids, and electronic devices such as ECUs and data acquisition systems.
The module replaces conventional relays, fuses and circuit breakers, simplifying wiring and reducing weight, while increasing reliability.
MoTeC CAN Keypads are now available for use with MoTeC PDMs.
Basic PDM30 specifications
Outputs
- 8 x 20 A outputs - 20 A continuous, 115 A transient (typical)
- 22 x 8 A outputs - 8 A continuous, 60 A transient (typical)
Inputs
- 16 x Switch inputs
Communications
- 1 x CAN
Diagnostic Information
- Output current and voltages
- Input voltages
- Error status
