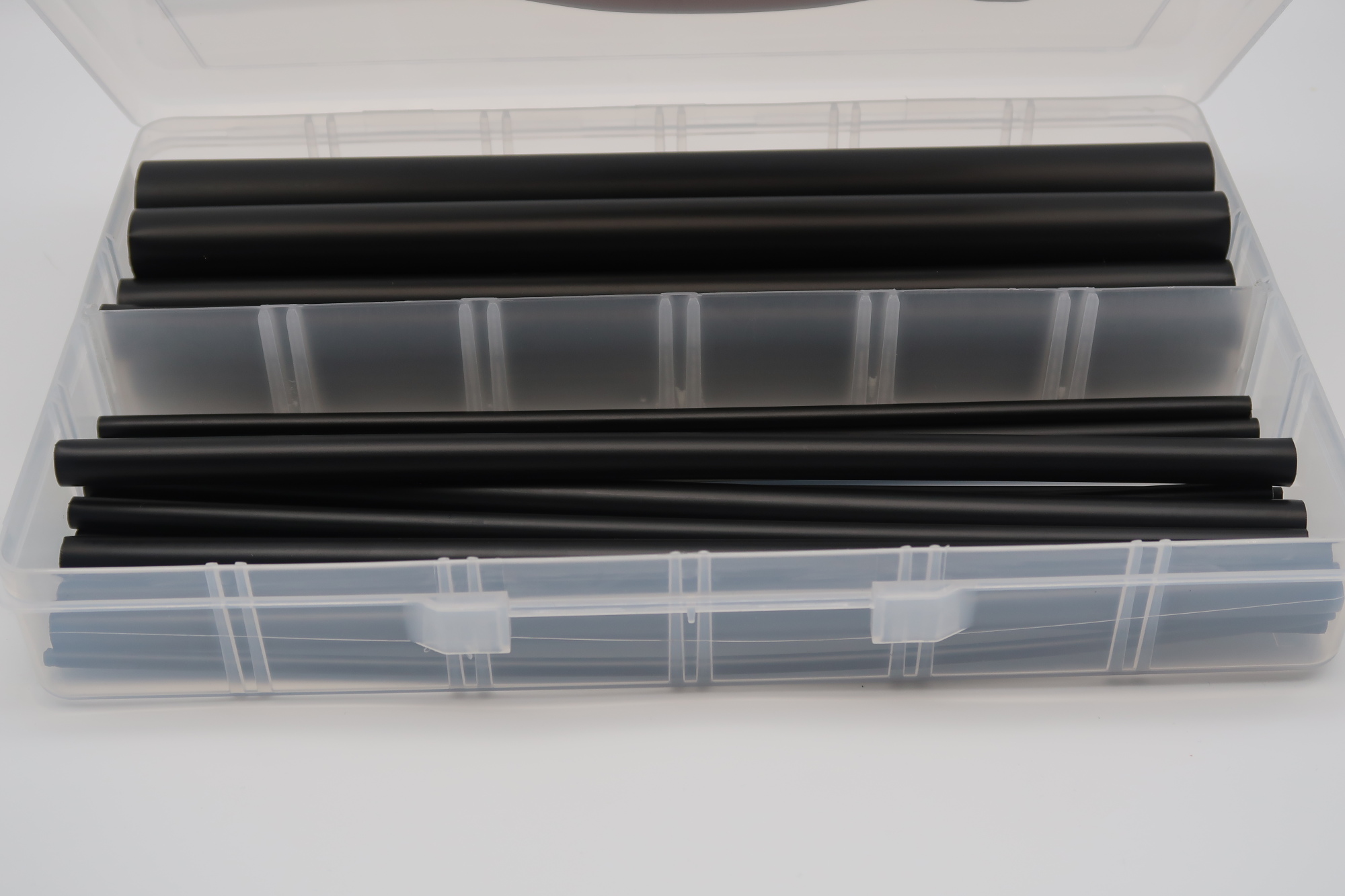

RAYCHEM SCL GLUE LINED PRO KIT (1/8" - 1")

1.2 metre lengths of Raychem glue lined  SCL cut to 300mm lengths in the following sizes 1/8", 3/16", 1/4", 3/8", 1/2" and 1".

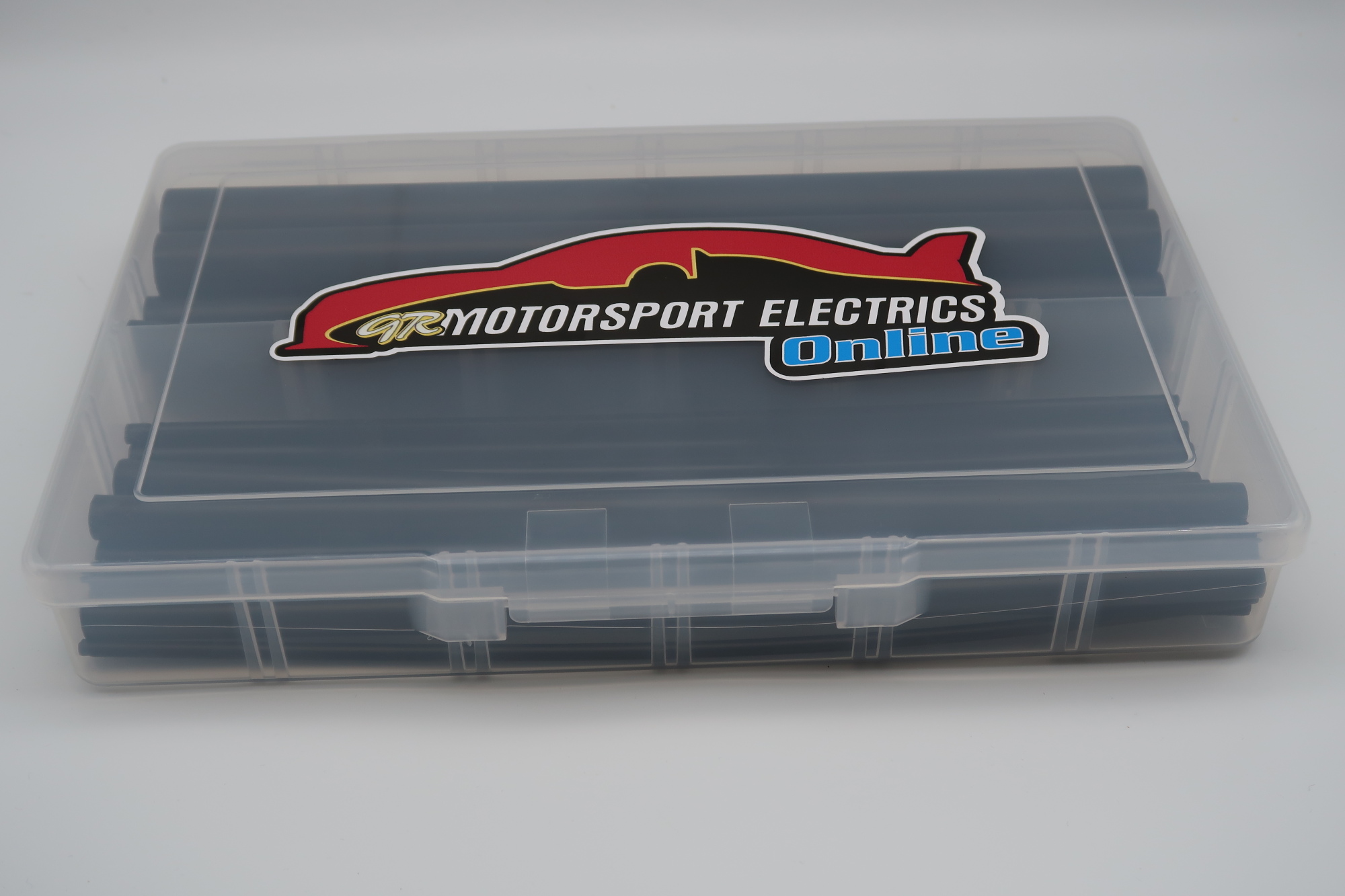

Storage box included.

Shrink Ratio : 3:1

SCL is encapsulant-lined, heat- shrinkable tubing that provides moisture resistance, strain relief, and electrical insulation for electrical splices, terminations, breakouts, and mechanical connections.

SCL is constructed as a dual-wall tubing. The outer wall is a semirigid, crosslinked polyolefin, while the inner wall is a meltable polyolefin that flows with the application of heat.

Heating SCL shrinks the outer jacket and melts the inner “ encapsulant” wall to flow and fill surface irregularities. While still hot, the tubing can be pinched and blocked to form a wire breakout. SCL provides a splash-resistant, moisture-resistant covering suitable for many applications. SCL also performs satisfactorily if briefly exposed to common solvents or chemicals.

The installed tubing provides rugged protection against abrasion, vibration, and flexing. A wide range of applications can be accommodated with only a few sizes of SCL tubing.
